HVAC Phenolic Ducts Made Simple
Manual bevels drift, milling throws dust, angle changes kill time, rework eats margin.

I use a multi-tool CNC line with small-angle and 45° bevel tools plus an oscillating knife. Software sets angles. Operators press "Start".

Yes—CNC lines with 5°–45° bevel tools and automated design software make phenolic duct fabrication faster, cleaner, and more repeatable than manual or milling-only setups. Expect higher throughput and tighter miters.

Keep reading if you want angle recipes, speed hints, and a simple ROI you can defend in a meeting.

Table of Contents

What I mean by “multi-tool CNC line”

I run three independent tool holders:

  • Bevel tool (45°) for classic miter joints.
  • Small-angle bevel (5°/10°/15°/22.5°/30°) for elbows, offsets, curved transitions.
  • Oscillating knife for straight cuts and trimming.

We pair this with a rigid table, zoned vacuum, and nesting software. Panel in. Parts out. Minimal dust.

Angle & groove fundamentals, 5°–45°

Common joints in pre-insulated HVAC: straight duct with 45° miters, elbows with small-angle grooves, branches with compound angles.
I target angle repeatability ≤ ±0.3° and length tolerance ≤ ±0.5 mm on typical boards. That is what keeps assembly fast.

Software workflow: design → nest → cut

We don’t draw from scratch. We input dimensions.
The library generates elbows, reducers, Ys, and transitions.
Then auto nesting packs parts to the board size.
Labels print with part names and assembly arrows.
Everything is traceable back to a job ID.

Throughput & quality: the numbers I see

  • Angle changeovers: instant in software; no manual jig swaps.
  • Cycle time: multi-tool lines cut and groove 30–50% faster than milling-only, job-mix dependent.
  • Rework: typical plants cut rework by 20–35% after standardizing angles and labels.
  • Edge finish: oscillating knife = cold, dust-light cut; fewer chips than milling on long runs.

Comparison: pick your poison or your productivity

CriterionManual CuttingMilling-OnlyAMOR Multi-Tool CNC
Angle rangeJigs, slow swapsToolpath only5°–45° on demand
ChangeoverMinutes to hoursCAM editsSoftware presets
Dust & cleanupHighHighLow (cold cut)
RepeatabilityOperator-dependentMediumHigh (±0.3°)
ThroughputLowMediumHigh (+30–50%)
Labeling/traceManualLimitedAutomatic labels + reports

If you build more than prototypes, the right column pays for itself.

Quick angle guide you can trust

AngleTypical useWhy I choose it
5° / 10°Soft bends, curved elbowsSmooth transitions, less turbulence
15° / 22.5°Standard elbows, offsetsBalanced cut length vs. airflow
30°Tight offsetsSpace-saving, still easy to seal
45°Miters for straight duct cornersClassic, fast assembly, strong seam

I keep both small-angle and 45° tools mounted. No time lost.

Configurations that work (and why)

  • Dual-holder: one small-angle + one 45°. Budget-friendly, big gains.
  • Triple-holder: add oscillating knife. Cut + groove in one pass. Best for volume.
  • Wide-bed: for big panels and batch nesting, The effective processing area of the machine is 1600mmX4000mm.
    We spec Hiwin rails, dual-servo X, and strong vacuum. Stability = tight angles.

Maintenance & safety

No flood coolant. Minimal dust.
Blades: wipe and inspect daily. Replace on schedule.
Calibration: quick angle check each shift, full check weekly.
Operators love not smelling burnt board all day.

KPI & ROI (simple and honest)

KPIBeforeAfter CNC (typical)
Angle deviation±1.0°±0.3°
Changeover time10–20 minSoftware-instant
Rework6–10%3–6%
Jobs/shiftBaseline+25–40%

ROI often lands in 6–12 months depending on mix, labor, and rework baseline.

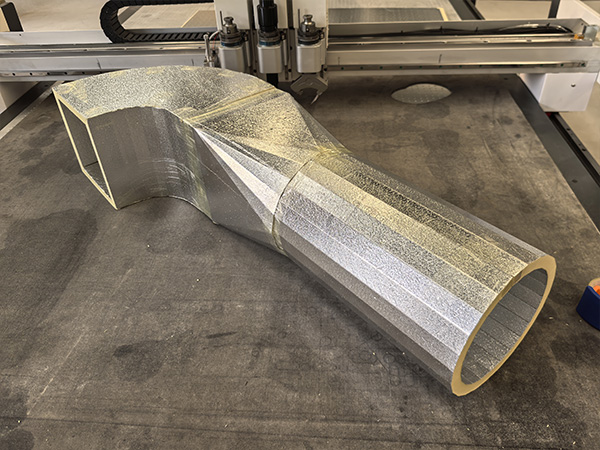

CNC phenolic duct cutting machine

Conclusion

Phenolic duct work doesn’t need drama. Multi-tool CNC lines with small-angle and 45° bevels plus oscillating cuts make grooves clean and assemblies quick. The software handles designs, nesting, and labels. You track real KPIs and get a payback you can defend.
Send me your elbow size and a parts list. I’ll send a cut plan, angle presets, and an ROI sheet by tomorrow morning.
