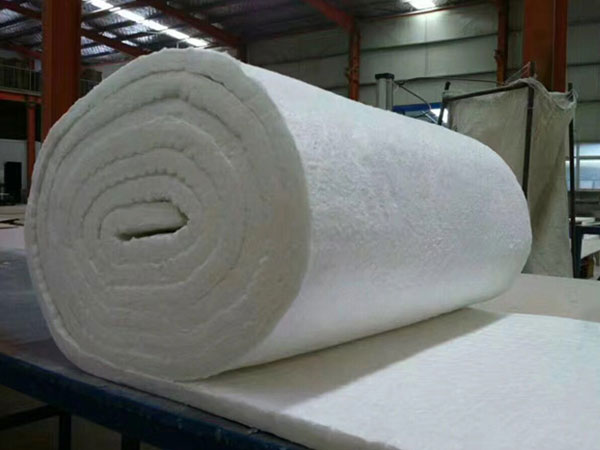

1. Understanding Ceramic Fiber Blanket Material
Ceramic fiber blankets are made from alumina-silica fibers processed into a flexible, lightweight mat via needling. This structure gives them excellent insulation performance.
Key Features:
- Heat resistance up to 1260°C
- Low thermal conductivity
- Lightweight, flexible structure
- Embedded fiber clusters in thicker blankets
Application Industries:
- Furnace lining
- Kiln insulation
- Fireproof doors
- Heat seals in chemical plants
- HVAC duct insulation

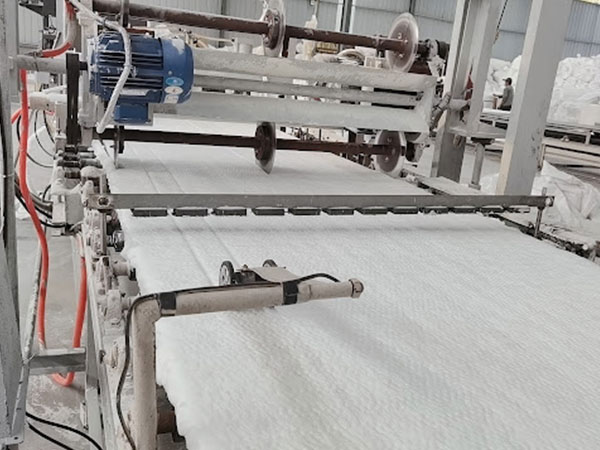

2. Challenges with Traditional Cutting Methods
Many customers initially attempt to cut ceramic fiber blankets using manual tools or general-purpose cutting equipment. However, these approaches often create problems.
| Method | Typical Problems |
|---|---|
| Utility knife or scissors | Frayed edges, inconsistent thickness, labor-intensive |
| Hot wire or laser | Material burning, smoke, health hazard |
| Waterjet or saw blade | Overkill, poor compatibility with soft fibrous material |
Common Drawbacks:
- Dust generation
- Edge fiber pull-out
- Incomplete fiber severing
- Blade jamming or breakage
- Uneven cut quality
3. Why Use Oscillating Knife Cutting Machines
CNC oscillating knife cutting machines are purpose-built for non-metallic, fibrous, and flexible insulation materials. They offer cold cutting with no thermal deformation, and ensure clean edges even for thick or low-density fiber blankets.
✅ Advantages:
- No heat, no dust
- Clean, smooth edges
- Precise depth control
- Safe and automated
- Customizable for any shape or thickness

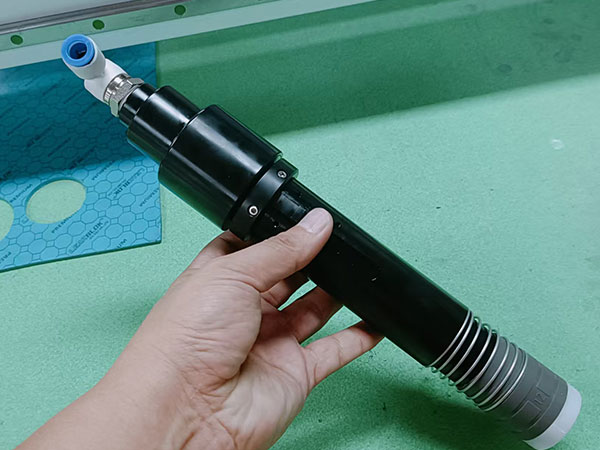

4. Tool Configuration for Silicon Fiber Blanket Cutting
🔧 Use Pneumatic Oscillating Tools with Large Amplitude
Due to the flexible nature and fiber density of ceramic fiber blankets, we recommend pneumatic oscillating tools with an amplitude of 8–10mm. This reduces blade drag and prevents material stretching during cutting.
🔧 Select the Right Vibration Frequency
Many users overlook this detail. Pneumatic tools typically offer:
- Low frequency: 8,000 strokes/min
- High frequency: 14,000 strokes/min
Using low-frequency tools on thin material (e.g., 3/8”) can result in incomplete bottom cuts, as fibers are not cleanly separated. The only workaround is to slow down the cutting speed, which reduces productivity.
We strongly recommend high-frequency pneumatic oscillating tools for clean, fast cuts—especially on thin or dense ceramic fiber blankets.

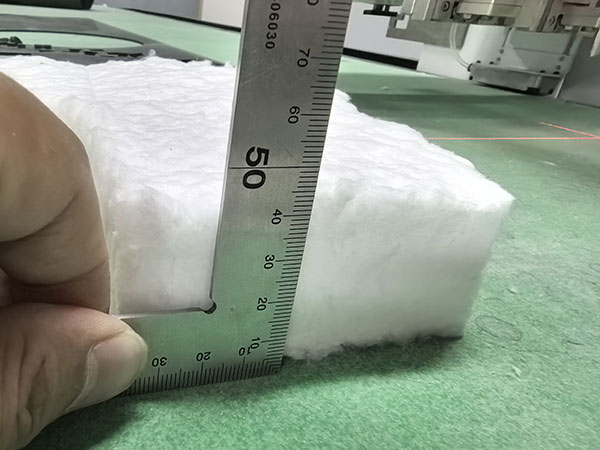

5. Density Differences by Thickness
The thickness of ceramic fiber blankets directly affects their cutting difficulty. Interestingly, thinner materials are denser, while thicker materials tend to be softer and more fibrous.
| Thickness | Density Trend | Cutting Difficulty |
|---|---|---|
| 3/8″ | High and uniform density | Low |
| 1″ | Lower density, softer core | Medium |
| 1.5″ | Uneven density: one side denser than the other | High |
In 1.5” materials, the top and bottom hardness differ. This creates unbalanced tool pressure, resulting in fiber stretching and cutting deviation if not handled properly.

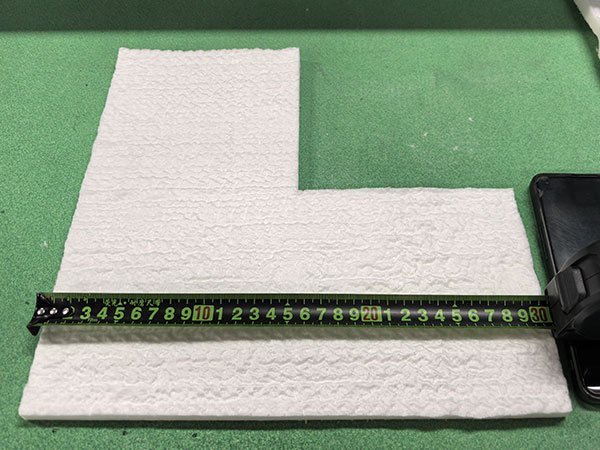

6. Cutting Strategies for Each Thickness
✂️ 3/8” (Approx. 10mm) Ceramic Fiber Blanket
- Tool: High-frequency pneumatic oscillating knife
- Speed: 300–400 mm/s
- Blade: Standard blade, sharp edge
- Tips:
- Use vacuum suction to hold the material flat
- Maintain blade sharpness for fiber separation
✂️ 1” (Approx. 25mm) Ceramic Fiber Blanket
- Tool: Pneumatic oscillating tool (8–10mm amplitude)
- Speed: 200–300 mm/s
- Blade: Longer blade for full penetration
- Tips:
- Check Z-axis depth calibration
- Avoid compressing the material before cutting
✂️ 1.5” (Approx. 38mm) Ceramic Fiber Blanket
If cut improperly, this thickness can break blades or stretch the material. Below are two proven methods:
✔️ Method 1: Layered Cutting
- Cut in two passes
- First pass: 0.75” depth
- Second pass: full penetration
- ✅ Minimizes blade stress, improves cut finish
✔️ Method 2: Smart Material Orientation
- Place the less dense side upward
- Reduces blade resistance
- Prevents tool from pulling the material
7. Practical Cutting Tips
| Issue | Solution |
|---|---|
| Incomplete cut on bottom layer | Use high-frequency vibration and increase cutting amplitude |
| Material moves during cutting | Activate zoned vacuum adsorption |
| Blade breakage in thick material | Use layered cutting strategy or reorient material |
| Fiber dust buildup on blade | Clean regularly with air gun |
✅ Installation Tip
- Blade should face the X+ direction when W-axis = 0
- Ensure blade tip is centered for optimal cutting precision

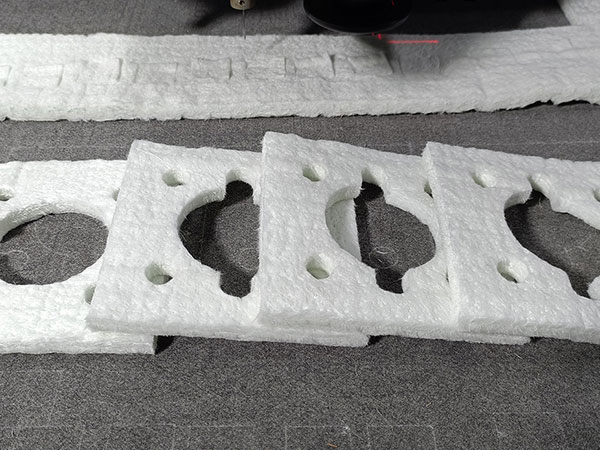

Conclusion: Cutting with Precision and Intelligence
Perfectly cutting ceramic fiber blankets—whether 3/8”, 1” or 1.5”—is not just about having a machine. It’s about choosing the right tool configuration, using high vibration frequency, and understanding how material density affects performance.
By using:
- Pneumatic oscillating tools with 8–10mm amplitude
- High-frequency settings for clean, fast cutting
- Smart strategies for layered or reoriented cutting on thicker materials
You can achieve smooth, precise, and efficient cuts—every time.
📌 Final Takeaway
To achieve scientific and efficient ceramic fiber blanket cutting:
- Choose the right tool based on thickness and density
- Use high amplitude + high frequency to ensure fiber severing
- Apply smart methods for cutting thicker, uneven materials
- Work with a supplier who understands your material needs and offers strong after-sales support
Let AMOR CNC help you build a smarter cutting process for your fireproof insulation and ceramic fiber blanket production.
