Professional Insulation cotton cutting machine manufacturer
Cutting and Grooving for Insulation Cotton
AMOR insulation cotton cutting machine can be used to cut glass fiber cotton, aluminum silicate blanket, ceramic fiber cotton, rubber and plastic cotton, polyester fiber cotton and other fireproof insulation materials.
BEST-SELLING MACHINE MODEL
Precision, Speed, and Cost-Efficiency
Recommended Machine Model
AMOR1625MK is the go-to model for 80% of customers in the sound-absorbing panel sector. It offers a 1600x2500mm work area. Need it bigger? Choose from options like 1600x3000mm or 1600x4000mm. We can also custom-build even larger sizes, such as 2500x3000mm.
Cutting-Edge Technologyl Methods
AMOR Insulation cotton cutting machine uses advanced oscillating knife cutting technology, which can be equipped with different cutting tools such as a pneumatic knife, oscillating knife, and beveling tool.
Fast Cutting for You
AMOR Insulation cotton cutting machine adopts a Japanese servo motor with a cutting speed of 200-2000 mm/s (according to the thickness and hardness of cotton).
Rich Application Experience
We have extensive application experience in the Insulation cotton processing industry and can provide you with timely and accurate guidance to help you achieve production.
Why choose CNC knife cutter
Solve problems you are facing
Insulation cotton materials will produce dust or be irritating to the human body during the cutting process, causing respiratory and skin diseases, such as glass fiber cotton, aluminum silicate blankets, ceramic fiber cotton, rubber and plastic cotton, polyester fiber cotton, etc. This is an important reason why many customers choose CNC knife cutting machines to cut insulation cotton.
In addition, AMOR oscillating knife cutting machine can complete the cutting of insulation cotton more quickly and efficiently. The cutting section is smooth, which improves production efficiency and quality. It is a more intelligent cutting method.
How to work for you
Quick and easy
01. Optimize Processing Graphic
Import your processing graphics into the machine's optimization software, and set the processing technology of the graphics: cutting, grooving, punching or milling.
02. Intelligent Processing
Transfer the optimized graphics to the machine, and the various tools equipped with the machine will automatically complete cutting, grooving, punching and other processing requirements.
03.Quick Completion and Delivery
Through the automatic switching of multiple tools, the machine can quickly complete complex designs such as cutting and grooving processes, achieving efficient production and rapid delivery.
Satisfy your needs

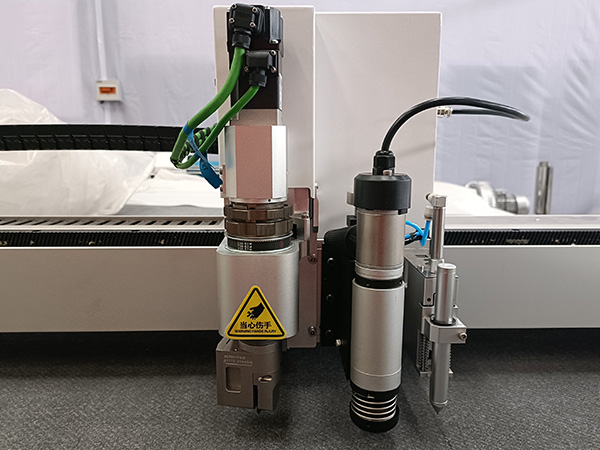

Various Cutting Tools
Electric Oscillating Tool
Can be used to cut high-density fiberglass wool boards, rock wool boards, etc. with a thickness of 40-120mm.
| Project | Parameter | |
|---|---|---|
| Power | 400W Mitsubishi Motor | |
| Amplitude | 5mm | |
| Vibration | 4000 times/min | |
Pneumatic Tool
Can be used to cut aluminum silicate blankets, ceramic fiber cotton, polyester fiber cotton, etc.
| Project | Parameter | |
|---|---|---|
| Power | 0.7MPA compressed air | |
| Amplitude | 10mm | |
| Vibration | 8000 times/min | |
Driving Wheel Cutter
Can be used to quickly cut 12mm thick polyester fiber cotton or various types of silicone fireproof cloth.
| Project | Parameter | |
|---|---|---|
| Power | 200W | |
| Blade Diameter | 25-50mm | |
Grooving Tools
Can be used for straight, curved and circular grooves on Insulation cotton board.
| Project | Parameter | |
|---|---|---|
| Angle | 0°, 15°, 22.5°, 30°, 45° | |
| Grooving Depth | 20mm/45° | |
| Speed | 200-500mm/s | |
Various tool combinations
One machine for multiple purposes
EOT+Grooving Tool
Can be used for cutting and grooving 40-120mm fiberglass wool boards.
POT
Can be used to cut polyester fiber cotton, rubber and plastic cotton, aluminum silicate blanket, ceramic fiber felt, etc.
Driving Wheel Cutter
It can be used to cut polyester fiber cotton, filter cotton, and various fireproof cloths.
Meet your cutting needs
Cutting aluminum silicate blanket
Cutting rubber and plastic cotton

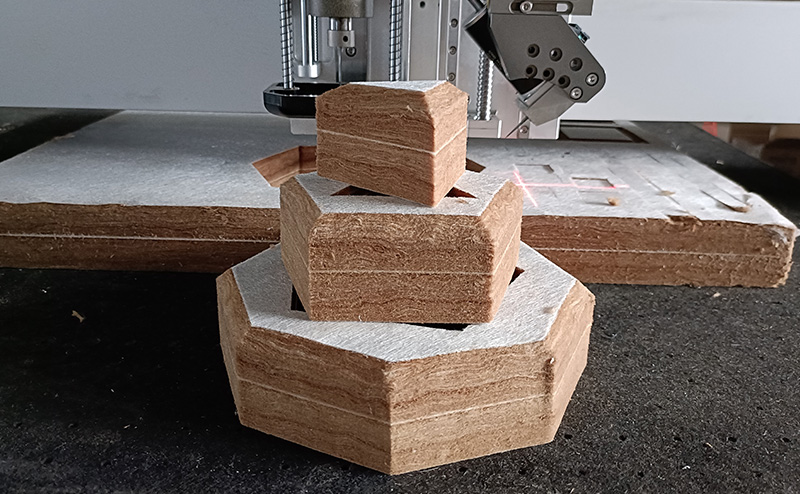

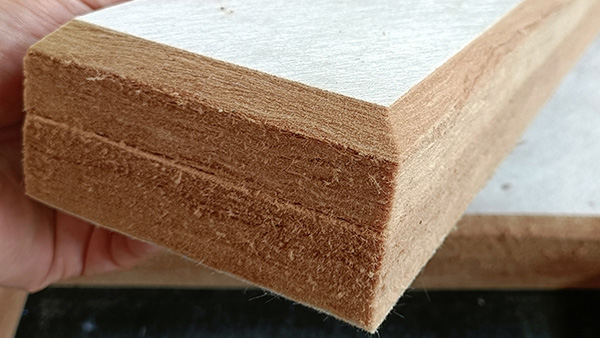

Glass Fiber Cotton Cutting and Grooving
Feedback from industry clientele
Set up your own CNC Knife cutting machine
A friend from India, who designs and production acoustic panel walls, picked our AMOR1625MK CNC knife cutter in 2020.
After a year, he shared that it’s great for cutting and grooving polyester panels. It handles tricky designs easily and has boosted his profits.
SATISFY you stable cutting
Key Advantages of Our Machines
strong power
The X-axis adopts the transmission mode of 2X400 Mitsubishi servo motor + precision reducer, which is powerful and high-precision.
Good electrical components
All electrical components are from international brands such as French Schneider, Japanese Omron, and American 3M.
heavy welded bed
Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed.
Zone Adsorption System
Enhance vacuum adsorption capacity. Can firmly absorb materials. Supports multiple modes to adapt to different processing needs.
Aluminum alloy die extrusion beam
The wall thickness is 8mm and the width is 220mm. It has its own installation reference and has strong anti-deformation ability.
Honeycomb adsorption platform
The thickness is 45mm, made of aviation aluminum alloy, with good flatness and a height error of 0.2mm.
Technical Parameters
| Machine Model | AMOR1625MK | AMOR1630MK | AMOR1640MK | Customization |
|---|---|---|---|---|
| Working Area | 1600X2500mm | 1600X3000mm | 1600X4000mm | Customization |
| Fixed Material | 7.5KW vacuum pump adsorption + follow overlay system | |||
| Transmission Port | Network port | |||
| Safety Systems | Equipped with anti-collision system and red light sensor system. | |||
| Material Passing Height | The standard pass is 45mm, and the maximum customization is 120mm. | |||
| Cutting Accuracy | ±0.1mm | |||
| Repeat Accuracy | ±0.01mm | |||
| Fastest Working Speed | 1500mm/s, the processing speed needs to be set according to the thickness and hardness of the material. | |||
| Required Voltage | Standard configuration: 380V±10%/220V±10%, can be customized according to your local voltage. | |||
| Applicable Materials | 8-50mm polyester fiber acoustic panels, fiberglass cotton panels. | |||
| Transmission System | Mitsubishi servo motor, HIWIN linear linear guide, Precision reducer, Grinding rack. | |||
| Control System | LCD touch screen supports English, Russian, Italian, Spanish, Korean, etc. | |||
| Operating Environment | Temperature 0-40°C Humidity 20%-80%RH | |||
| Optional Tools | Electric oscillating cutters, pneumatic oscillating cutters, milling cutters, punching tools. | |||
| Support File Format | AI、PLT、DXF、CDR etc. | |||
Your Trusted Partner in Precision Cutting
One Stop Solution for You
Free Proofing
Understanding your machine’s capabilities—like cutting speed, tool functions, and material thickness—is crucial for making a wise investment. That’s why our free proofing service is invaluable in helping you make the right decision.
Precision Installation
With our seasoned installation engineers at the helm, meticulous adjustments to the X/Y/Z axes’ movement clearances and working platform flatness are executed. This attention to detail ensures the machine operates at peak precision, safeguarding the quality and accuracy of your output
Cutting Accuracy Test
To ensure superior cutting precision across large formats, each of our machines undergoes rigorous testing. We execute multiple iterations of the same graphic cut at varying positions on the machine’s work surface. This meticulous process verifies the machine’s consistent performance and adherence to our high-quality standards.
Packaging and Shipping
The Sturdiness and Safety Measures in Place for Packaging and Transportation
Our machines are securely encased in robust, industrial-grade packaging, and shipped via trusted carriers to ensure they arrive in pristine condition, ready for immediate deployment. precision, safeguarding the quality and accuracy of your output
Training for Install and Use
- Perfect Teaching Video
- Detailed Text and Picture Tutorials
- 7X24 Hours Online Answer
- Video Connection, Quick Solution
- Global Dispatch, On-Site Training
Get professional solutions
Unlock your business’s full potential with AMOR’s CNC Gasket Cutting Machines.
Designed with precision and backed by a commitment to quality, our solutions are tailored to elevate your production efficiency.
Don’t settle for less; reach out to us today and discover how we can drive your success.
Click ‘Inquire Now’ and take the first step towards a profitable future with AMOR.”
Customer Review AMOR
Professional, serious and responsible
How to pack
Moisture-proof, pressure-proof and collision-proof
01. X and Y axes and all individual parts are secured to avoid bumps during shipping.
02. Triple-layer protection inside: film, bubble wrap, and PVC cover for moisture-proofing.
03. L-shaped packaging design to protect the crossbeam from heavy pressure.
04. Steel pipe supports at the box bottom for forklift operations during shipping.
3-year warranty
24-hour online solutions
01. Vibrating knife gasket cutting machine has three-year free warranty (except vulnerable parts), free inspection and maintenance of main components.
02. Provide lifetime free technology upgrade service
03. Wearable parts (such as blades, workbench covers) are always available at cost when needed.
04. Free operation training is conducted in our factory. If there is not enough time, we will send detailed training videos.
05. 24-hour online service, providing free technical support in different languages.
06. On-site technical support can be provided when needed.
8 frequently asked questions
If your question is not listed, please email us right now.
Yes, AMOR is a professional CNC knife cutting machine manufacturing factory. The company is located in Jinan City, the largest CNC equipment production base in China.
Yes, CNC knife cutting machine has a variety of tool combinations. Multiple independent tools can be installed, or multiple tools can share one tool holder.
Yes, AMOR1625, 1630, and 1640 series are all in stock, with a delivery cycle of 3-4 days, and the delivery cycle of customized models is 30 days.
Yes, you can configure a variety of tools to meet the processing needs of different materials. In addition to cutting tools, we can also configure grooving tools, creasing tools, punching and marking tools, etc.
Yes, the maximum cutting speed is 1500mm/s. The specific processing speed should be set according to the thickness and density of the material and the type of tool selected.
Yes, we provide detailed installation and operation videos, and have professional engineers online to guide you.
Yes, the main consumables are the blade and felt platform.
Yes, regular maintenance of the machine can extend its service life. Customers need to lubricate and maintain the guide rails and rack cutting tools, etc. We will provide you with detailed maintenance guidelines.
