Professional CNC Gasket Cutting Machine manufacturer
No Need Mold, More Flexible
AMOR CNC gasket cutting machine helps you achieve rapid production of customized gaskets.
best-selling machine model
Precision, Speed, and Cost-Efficiency

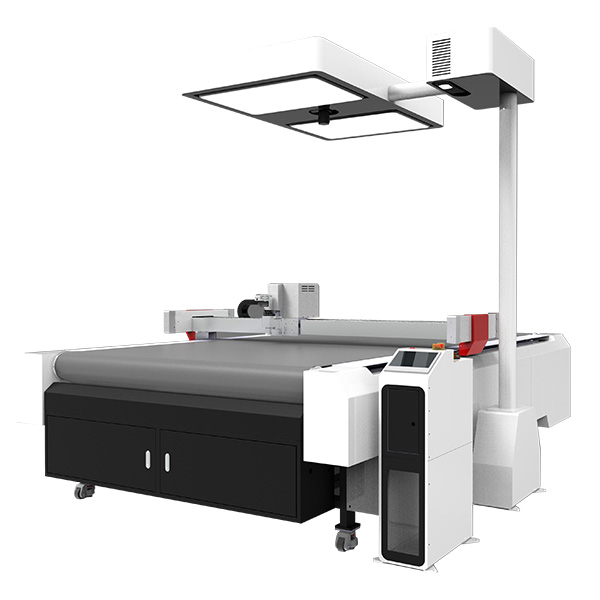

Recommended Machine Model
Our top pick for the gasket industry is the AMOR1625MK, chosen by 80% of customers. It has a 1600x2500mm working area. Need something smaller? Go for the 1600x1000mm option. We also customize larger sizes like 1600x4000mm and 2000x2500mm.
Cutting-Edge Technology
Experience fast, precise, and stable gasket cutting with AMOR's high-frequency oscillating technology and specialized software. Ideal for various materials including PTFE and asbestos-free sheets.
Problem-Solving for You
AMOR CNC tackles industry issues like labor age, inefficiency, and waste, simplifying complex cuts and streamlining operations. Result: lower costs, better efficiency, stronger market standing.
Customize to Your Needs
From projector positioning systems to varied tool combinations and expansive working areas, customize your machine to fit your unique requirements.

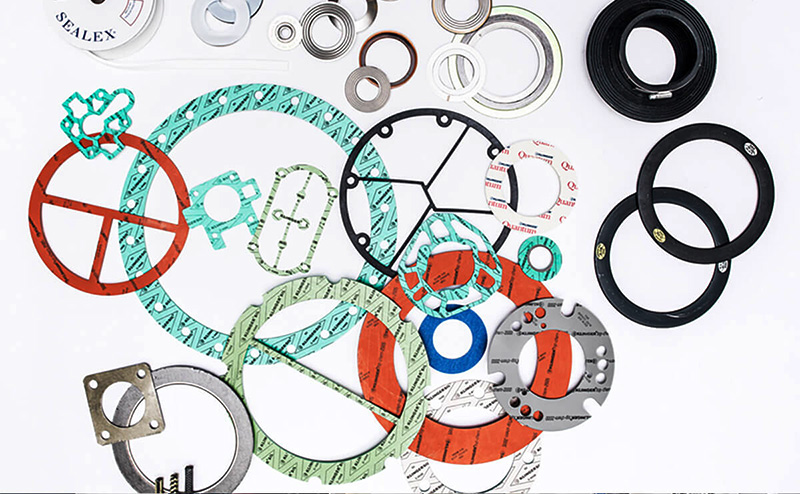

Are you facing these problems?
6 Challenges in Traditional Gasket Cutting
- Inconsistent Cuts: Manual cutting gasket methods can lead to inconsistent cuts which might not match the exact specifications or tolerances required.
- Die Wear and Maintenance: Need to make a large of molds, wear out quickly and require frequent maintenance, leading to downtime and additional costs. wear out quickly and require frequent maintenance, leading to downtime and additional costs.
- Limited Versatility: It might not be versatile enough to handle the variety of materials used in gasket manufacturing, such as rubber, asbestos, or various fibrous materials.
- Wasted Cut-Offs: Poor cutting patterns lead to excess material loss and higher costs.
- Safety Concerns: Manual cutting gaskets can be hazardous, especially with tough materials or complex designs.
- Limited Scalability: Traditional techniques can’t quickly adapt to customized order spikes, causing delays.
Help you achieve intelligent cutting
Quick and easy

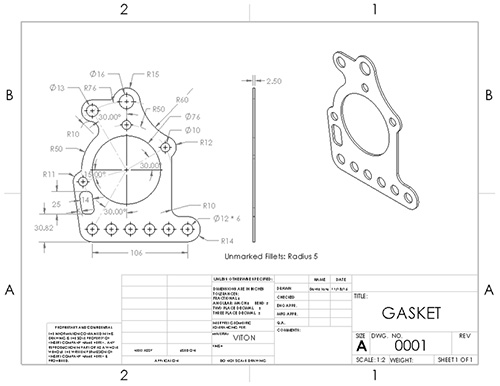

01. Design Graphics
After getting a customer order, simply design the needed patterns in CAD.
Save the design for future use. Just retrieve it when needed again.

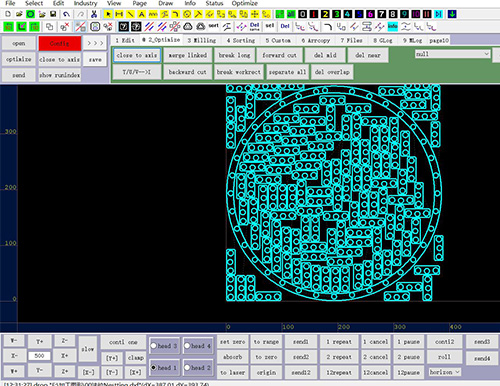

02. Optimize Processing Graphic
AMOR CNC gasket cutting machine has an auto-nesting feature. It adjusts the design, start point, and direction for the best cutting path.
03. Automatically Cutting
Load the design into the CNC gasket machine and use the auto-cut mode. This speeds up order completion.
Satisfy your needs
Various Cutting Tools
Pneumatic Oscillating Tool (POT)
Suitable for 1-15mm rubber, 1-5mm asbestos, 1-5mm PTFE, 1-10mm silicone, cork, and graphite , etc.
| Project | Parameter | |
|---|---|---|
| Power | 0.7MPA compressed air | |
| Amplitude | 10mm | |
| Vibration | 8000 times/min | |
400W Electric Oscillation Tool
Suitable for cutting 10-20mm nylon rubber, 2-5mm asbestos and graphite reinforced gasket.
| Project | Parameter | |
|---|---|---|
| Power | 400W servo motor | |
| Amplitude | 5mm | |
| Vibration | 4000 times/min | |
Milling Tool
Suitable for cutting materials with high hardness and thickness: 6mm epoxy resin plate, 10-25mm rubber, 5-10mm PTFE.
| Project | Parameter | |
|---|---|---|
| Power | 0.8-1.5KW compressed air | |
| Rotating Speed | 24000-40000 rpm/min | |
Various tool combinations
One machine for multiple purposes
POT+Milling Tool
Suitable for cutting 1-12mm nitrile/chloroprene rubber plates, ≤3mm non-asbestos plates, PTFE plates, pure graphite plates, etc., as well as cutting high-hardness epoxy resin plates and rubber plates ≥20mm thick.
400W EOT+Milling Tool
Suitable for cutting 1-5mm non-asbestos boards, PTFE boards, graphite reinforced boards, 10mm nylon rubber boards, polyurethane boards; as well as cutting high-hardness epoxy resin boards and rubber boards with a thickness of ≥20mm.
POT+400W EOT
Meet the needs of non-asbestos boards, PTFE boards, graphite reinforced boards, nylon rubber board cutting, polyurethane boards, rubber boards, silicone boards, ceramic fiber papers, pure graphite boards, etc.
400W EOT+Milling Tool+POT
Suitable for cutting various types of gaskets with different hardness, density and thickness. Such as: non-asbestos board, rubber, graphite reinforced board, epoxy resin board, etc.
Meet different gasket cutting
Graphite reinforced gasket
Rubber gasket
Non-asbestos gasket
PTFE gasket
Nylon Clamping Rubber Gasket
Cork Rubber Gasket
Set Up Your Own CNC Gasket Cutter
9 questions about CNC gasket cutter
How to solve the problem of difficult cutting of custom gaskets?—- 00:23;
What tools does the CNC gasket cutting machine have, and what types of gaskets can it cut?—-01:23
How does a CNC gasket cutting machine work?—03:06
How to operate CNC gasket cutting machine?—04:00
How to ensure that the CNC gasket cutting machine works continuously and stably?—09:38
User reviews and experiences of CNC gasket cutting machines.—12:24
Is the cost of using a CNC gasket cutting machine high?—14:40
How to pack and transport CNC gasket cutting machine?—15:26
How to maintain CNC gasket cutting machine?—16:03
SATISFY you stable cutting
Key Advantages of Our Machines
Nested Software
More than 100 kinds of gasket designs built-in,
automatically nested in 1 minute,
saving 10% of materials.
strong power
The X-axis adopts the transmission mode of 2X400 Mitsubishi servo motor + precision reducer, which is powerful and high-precision.
Good electrical components
All electrical components are from international brands such as French Schneider, Japanese Omron, and American 3M.
heavy welded bed
Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed.
Aluminum Alloy Die Extrusion Beam
The wall thickness is 8mm and the width is 220mm. It has its own installation reference and has strong anti-deformation ability.

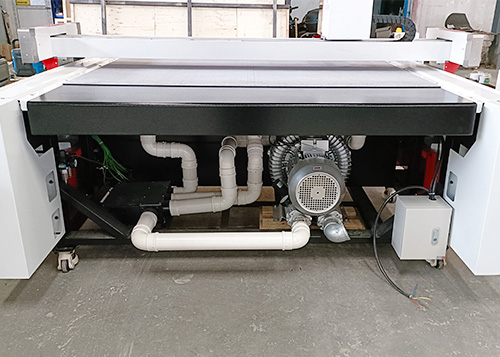

Vacuum adsorption system
Supports multiple partition adsorption modes: according to graphics, cutting position and manual settings, etc. Hold the material firmly.
Technical Parameters
| Machine Model | AMOR1610MK | AMOR1625MK | AMOR1640MK | Customization |
|---|---|---|---|---|
| Working Area | 1600X1000mm | 1600X2500mm | 1600X4000mm | Customization |
| Fixed Material | 7.5KW&9KW vacuum pump zoned adsorption | |||
| Transmission Port | Network port | |||
| Material Fixing Method | Vacuum partition adsorption | |||
| Safety Systems | Equipped with anti-collision system and red light sensor system. | |||
| Material Passing Height | The standard pass is 45mm, and the maximum customization is 120mm. | |||
| Cutting Accuracy | ±0.1mm | |||
| Repeat Accuracy | ±0.01mm | |||
| Fastest Working Speed | 1500mm/s, the processing speed needs to be set according to the thickness and hardness of the material. | |||
| Required Voltage | Standard configuration: 380V±10%/220V±10%, can be customized according to your local voltage. | |||
| Applicable Materials | Asbestos-free materials, asbestos rubber sheets, graphite composite materials, rubber sheets, PTFE sheets, nylon materials, silicone materials, fluorine rubber materials, etc. | |||
| Transmission System | Mitsubishi servo motor, HIWIN linear linear guide, Precision reducer, Grinding rack. | |||
| Control System | LCD touch screen supports English, Russian, Italian, Spanish, Korean, etc. | |||
| Operating Environment | Temperature 0-40°C Humidity 20%-80%RH | |||
| Software | Gasket nesting software, graphics optimization software, projection positioning software. | |||
| Support File Format | AI、PLT、DXF、CDR etc. | |||
Your Trusted Partner in Precision Cutting
One Stop Solution for You
Free Proofing
Understanding your machine’s capabilities—like cutting speed, tool functions, and material thickness—is crucial for making a wise investment. That’s why our free proofing service is invaluable in helping you make the right decision.
Precision Installation
With our seasoned installation engineers at the helm, meticulous adjustments to the X/Y/Z axes’ movement clearances and working platform flatness are executed. This attention to detail ensures the machine operates at peak precision, safeguarding the quality and accuracy of your output
Cutting Accuracy Test
To ensure superior cutting precision across large formats, each of our machines undergoes rigorous testing. We execute multiple iterations of the same graphic cut at varying positions on the machine’s work surface. This meticulous process verifies the machine’s consistent performance and adherence to our high-quality standards.
Packaging and Shipping
The Sturdiness and Safety Measures in Place for Packaging and Transportation
Our machines are securely encased in robust, industrial-grade packaging, and shipped via trusted carriers to ensure they arrive in pristine condition, ready for immediate deployment. precision, safeguarding the quality and accuracy of your output
Training for Install and Use
- Perfect Teaching Video
- Detailed Text and Picture Tutorials
- 7X24 Hours Online Answer
- Video Connection, Quick Solution
- Global Dispatch, On-Site Training
Cutting Data of 13 Gasket Types
Do you want to know the most realistic working speed of CNC gasket cutting machine? Download it here.
We show you the most realistic cutting data for 13 different types and thicknesses of gasket materials, including linear speed, acceleration, curve speed and small circle speed.
Customer Review AMOR
Professional, serious and responsible
How to pack
Moisture-proof, pressure-proof and collision-proof
01. X and Y axes and all individual parts are secured to avoid bumps during shipping.
02. Triple-layer protection inside: film, bubble wrap, and PVC cover for moisture-proofing.
03. L-shaped packaging design to protect the crossbeam from heavy pressure.
04. Steel pipe supports at the box bottom for forklift operations during shipping.
3-year warranty
24-hour online solutions
01. Vibrating knife gasket cutting machine has three-year free warranty (except vulnerable parts), free inspection and maintenance of main components.
02. Provide lifetime free technology upgrade service
03. Wearable parts (such as blades, workbench covers) are always available at cost when needed.
04. Free operation training is conducted in our factory. If there is not enough time, we will send detailed training videos.
05. 24-hour online service, providing free technical support in different languages.
06. On-site technical support can be provided when needed.
8 frequently asked questions
If your question is not listed, please email us right now.
Yes, AMOR is a professional CNC gasket cutting machine manufacturing factory. The company is located in Jinan City, the largest CNC equipment production base in China.
Yes, CNC gasket cutting machine has a variety of tool combinations. Multiple independent tools can be installed, or multiple tools can share one tool holder.
Yes, AMOR1610, 1625, and 1640 series are all in stock, with a delivery cycle of 3-4 days, and the delivery cycle of customized models is 30 days.
Yes, you can configure a variety of tools to meet the processing needs of different materials. In addition to cutting tools, we can also configure grooving tools, creasing tools, punching and marking tools, etc.
Yes, the maximum cutting speed is 1500mm/s. The specific processing speed should be set according to the thickness and density of the material and the type of tool selected.
Yes, we provide detailed installation and operation videos, and have professional engineers online to guide you.
Yes, the main consumables are the blade and felt platform.
Yes, regular maintenance of the machine can extend its service life. Customers need to lubricate and maintain the guide rails and rack cutting tools, etc. We will provide you with detailed maintenance guidelines.
