AMOR automatic pre-insulated duct cutting machine revolutionizes the manufacturing of insulated ductwork within the HVAC industry.
AMOR 1640MK pre-insulated pipe cutting machine is completely designed by ourselves. Oscillating knife cutting technology is used for the manufacture of insulated pipes including pir pipes and other foam pipe materials.
Simple and smooth operating system makes it possible to cut and produce complex air ducts easily, accurately and quickly. can bring you complete solutions that will revolutionize the manufacturing of insulated duct systems in the HVAC industry.
An independent module automatic tool changer is adopted. V-grooving and cutting can be done in one process. It is also equipped with a pipeline component parameter library to realize automatic nesting to maximize plate utilization.
From projector positioning systems to varied tool combinations and expansive working areas, customize your machine to fit your unique requirements.
01. Reduce production’s dependence on workers. Advanced automation technology eliminates the traditional labor-intensive work required to produce duct panels, eliminating the need to manually mark, create templates or use handheld tools to cut.

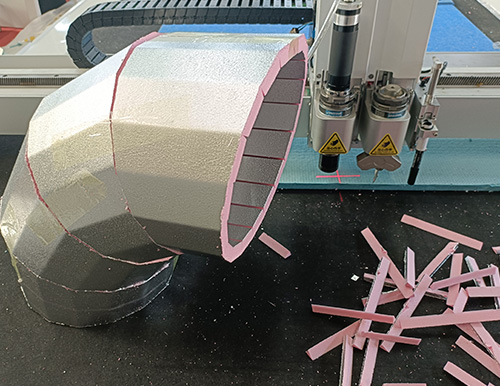

02. Produce samples quickly; no more manual work and bending, and the parts obtained are ready for bonding. Reduce production time and produce the best quality finished product.

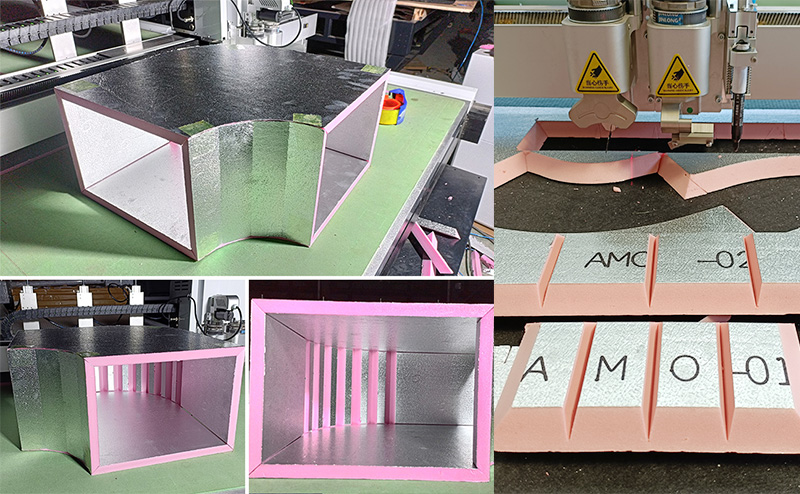

03. Realize intelligent cutting method; working size is 4000x1600mm, which can make full use of phenolic foam board. Different shapes can be cut at one time, such as elbow type, shoe type, Y type, reducer, etc.
04. Rich industry application experience; customers are very satisfied with this CNC air duct cutting machine, especially compared with other major brands on the market, we are stable, fast and more cost-effective.
05. Multifunctional; in addition to being used to make phenolic air ducts, it can also be used for milling aluminum polymer composite materials, fiberglass (fiberglass) insulation materials, PVC, PU, and PIR foam air duct panels for air conditioning and HVAC systems. and V-groove.
Get the dimensions you want in the database and get the machining graphics by changing the data.

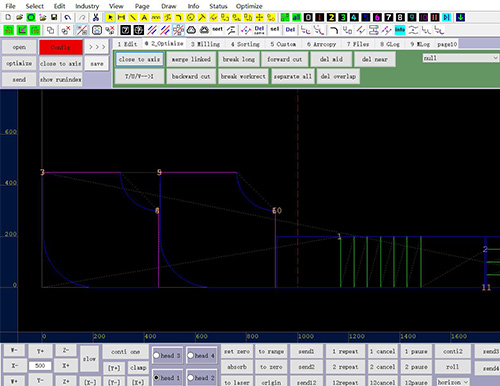

Set cutting, grooving and beveling commands in the processing software.
Load the design into the CNC knife cutting machine and use the auto-cut mode. This speeds up order completion.
It can be used for cutting all kinds of phenolic air ducts, and can cut aluminum foil and thin metal plates on the surface.
Project | Parameter | |
---|---|---|
Power | 0.7MPA compressed air | |
Amplitude | 10mm | |
Vibration | 8000 times/min |
Equipped with dual grooving tools, it can complete 15° and 45° grooving at one time.
Project | Parameter | |
---|---|---|
Power | Grooving Tool | |
Grooving Depth | 25mm | |
Angle | 0°, 15°, 22.5°, 30°, 45° |
Important information can be marked on the surface of the material to assist workers in fast bonding and construction.
Project | Parameter | |
---|---|---|
Refill | Watercolor Pen | |
Speed | 500mm/s |
V-grooving and cutting can be done in one process, resulting in significant cost savings in all aspects.
Grooving and beveling at two different angles can be completed at one time
In 2020, a customer from India opted for our AMOR1625MK CNC knife cutting machine. This is their honest review after one year of use
Machine Model | AMOR1640MK | |||
---|---|---|---|---|
Working Area | 1600X4000mm | |||
Fixed Material | 7.5KW&9KW vacuum pump zoned adsorption | |||
Transmission Port | Network port | |||
Material Fixing Method | Vacuum partition adsorption | |||
Safety Systems | Equipped with anti-collision system and red light sensor system. | |||
Material Passing Height | The standard pass is 45mm, and the maximum customization is 120mm. | |||
Cutting Accuracy | ±0.1mm | |||
Repeat Accuracy | ±0.01mm | |||
Fastest Working Speed | 1500mm/s, the processing speed needs to be set according to the thickness and hardness of the material. | |||
Required Voltage | Standard configuration: 380V±10%/220V±10%, can be customized according to your local voltage. | |||
Applicable Materials | Asbestos-free materials, asbestos rubber sheets, graphite composite materials, rubber sheets, PTFE sheets, nylon materials, silicone materials, fluorine rubber materials, etc. | |||
Transmission System | Mitsubishi servo motor, HIWIN linear linear guide, Precision reducer, Grinding rack. | |||
Control System | LCD touch screen supports English, Russian, Italian, Spanish, Korean, etc. | |||
Operating Environment | Temperature 0-40°C Humidity 20%-80%RH | |||
Software | Gasket nesting software, graphics optimization software, projection positioning software. | |||
Support File Format | AI、PLT、DXF、CDR etc. |

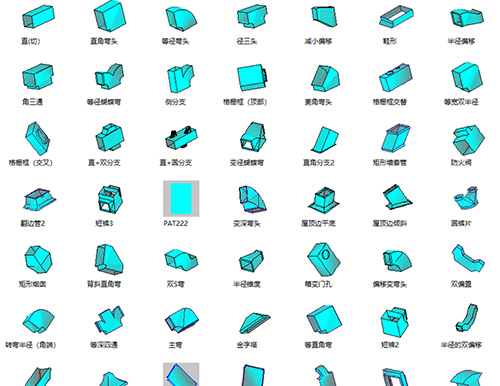

There are more than 100 commonly used duct designs built-in. Just change the data to obtain the processing graphics, and automatically nest and output the cutting graphics.
The X-axis adopts the transmission mode of 2X400 Mitsubishi servo motor + precision reducer, which is powerful and high-precision.
All electrical components are from international brands such as French Schneider, Japanese Omron, and American 3M.
Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed.
Enhance vacuum adsorption capacity. Can firmly absorb materials. Supports multiple modes to adapt to different processing needs.
The wall thickness is 8mm and the width is 220mm. It has its own installation reference and has strong anti-deformation ability.
Understanding your machine’s capabilities—like cutting speed, tool functions, and material thickness—is crucial for making a wise investment. That’s why our free proofing service is invaluable in helping you make the right decision.
With our seasoned installation engineers at the helm, meticulous adjustments to the X/Y/Z axes’ movement clearances and working platform flatness are executed. This attention to detail ensures the machine operates at peak precision, safeguarding the quality and accuracy of your output

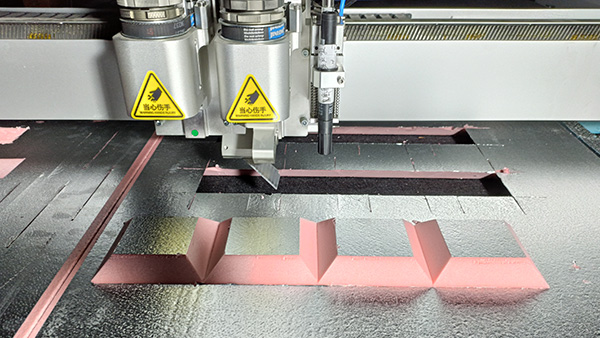

To ensure superior cutting precision across large formats, each of our machines undergoes rigorous testing. We execute multiple iterations of the same graphic cut at varying positions on the machine’s work surface. This meticulous process verifies the machine’s consistent performance and adherence to our high-quality standards.
The Sturdiness and Safety Measures in Place for Packaging and Transportation
Our machines are securely encased in robust, industrial-grade packaging, and shipped via trusted carriers to ensure they arrive in pristine condition, ready for immediate deployment. precision, safeguarding the quality and accuracy of your output
01. X and Y axes and all individual parts are secured to avoid bumps during shipping.
02. Triple-layer protection inside: film, bubble wrap, and PVC cover for moisture-proofing.
03. L-shaped packaging design to protect the crossbeam from heavy pressure.
04. Steel pipe supports at the box bottom for forklift operations during shipping.
01. Vibrating knife gasket cutting machine has three-year free warranty (except vulnerable parts), free inspection and maintenance of main components.
02. Provide lifetime free technology upgrade service
03. Wearable parts (such as blades, workbench covers) are always available at cost when needed.
04. Free operation training is conducted in our factory. If there is not enough time, we will send detailed training videos.
05. 24-hour online service, providing free technical support in different languages.
06. On-site technical support can be provided when needed.
Yes, AMOR is a professional CNC gasket cutting machine manufacturing factory. The company is located in Jinan City, the largest CNC equipment production base in China.
Yes, CNC gasket cutting machine has a variety of tool combinations. Multiple independent tools can be installed, or multiple tools can share one tool holder.
Yes, AMOR1610, 1625, and 1640 series are all in stock, with a delivery cycle of 3-4 days, and the delivery cycle of customized models is 30 days.
Yes, you can configure a variety of tools to meet the processing needs of different materials. In addition to cutting tools, we can also configure grooving tools, creasing tools, punching and marking tools, etc.
Yes, the maximum cutting speed is 1500mm/s. The specific processing speed should be set according to the thickness and density of the material and the type of tool selected.
Yes, we provide detailed installation and operation videos, and have professional engineers online to guide you.
Yes, the main consumables are the blade and felt platform.
Yes, regular maintenance of the machine can extend its service life. Customers need to lubricate and maintain the guide rails and rack cutting tools, etc. We will provide you with detailed maintenance guidelines.
