Professional Automatic Fabric Spreading Machines manufacturer
Only one operator is needed to replace 2-4 workers, and the fastest material pulling speed is 85 meters/minute. It improves work efficiency and reduces production costs.

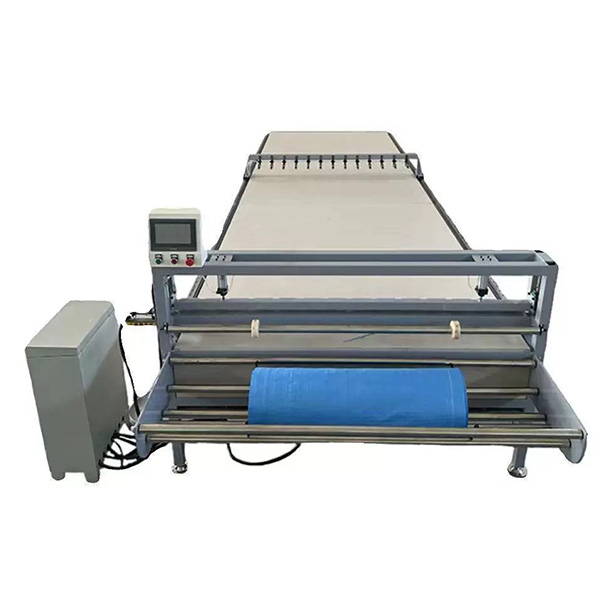

Automatic Fabric Spreading Machines
AMOR automatic fabric spreading machine adopts PLC computer control, which can set the number of layers, speed and length of the material pulling, and automatically complete the material pulling work according to the set data.
It is also equipped with an automatic sensing system to realize automatic deviation correction during feeding and automatic stop when there is no fabric.
Applicable to: all non-elastic fabrics or slightly elastic fabrics, such as: clothing, textiles, medical, air film, luggage, shoes, plush toys, etc.
SATISFY you stable working

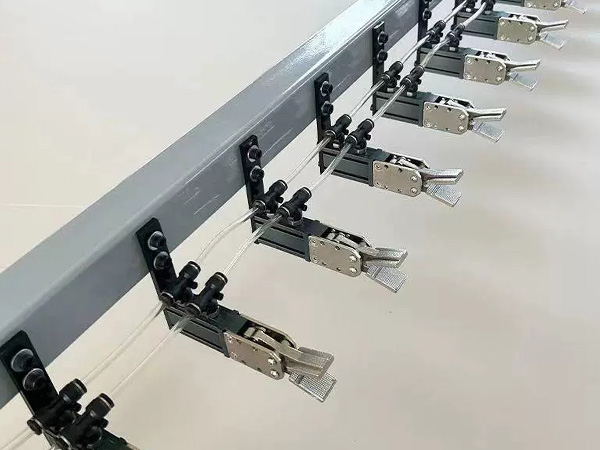

Pneumatic clamping system
The fabric can be firmly grasped, and the opening and closing of the clamping mouth can be automatically controlled by pneumatic.

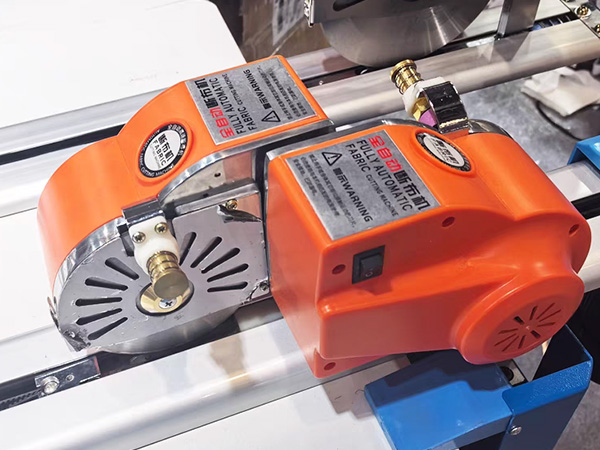

Automatic circular knife cutting tool
It works closely with the material pulling system to complete the cutting work after each material pulling, with a maximum cutting thickness of 30mm.
Fabric roll support
It can hold 100KG-140KG fabric rolls, with a standard fabric diameter of 120cm.

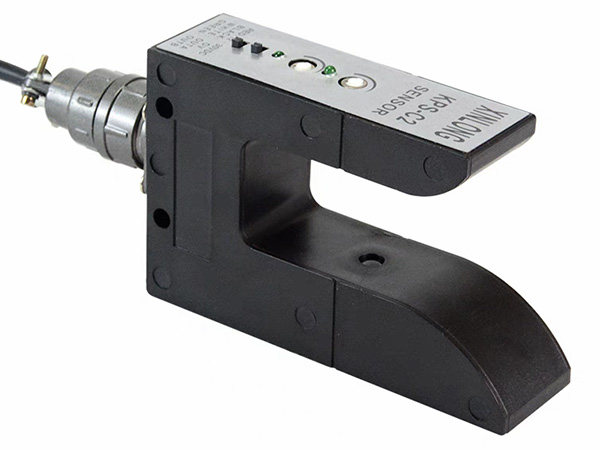

Automatic detection system
They are equivalent to the eyes of the automatic fabric spreading machine, which can observe the position of the fabric at any time and complete the correction and feeding work.
Technical Parameters
| NAME | UNIT | QUANTITY | NOTES | ||
|---|---|---|---|---|---|
| Cutting Tool | Set | 1 | Tungsten steel material | ||
| Feeding Length | mm | 1-10000mm | Customizable | ||
| Feeding width | mm | 1600mm | Customizable | ||
| Cutting Thickness | mm | 1-20 | According to the material | ||
| Transmission Mode | Timing belt & pulley | ||||
| Machine Weight | KG | 500KG | |||
| Operating Power | KW | 3.5KW | |||
| Feeding Speed | mm/min | 10-80m/min | |||
| Fabric Roll Weight | KG | 100-150 | Optional | ||
How to work for you
Intelligent, efficient, high precision
Upgradable Configuration Options

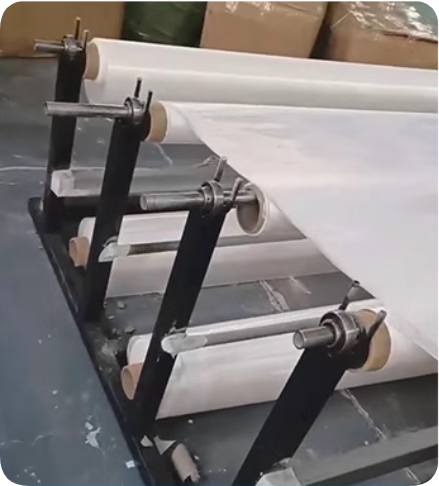

Multi-Roll Fabric Rack
It can prevent 2-5 rolls of fabric and complete the delivery of multiple layers of fabric at one time.

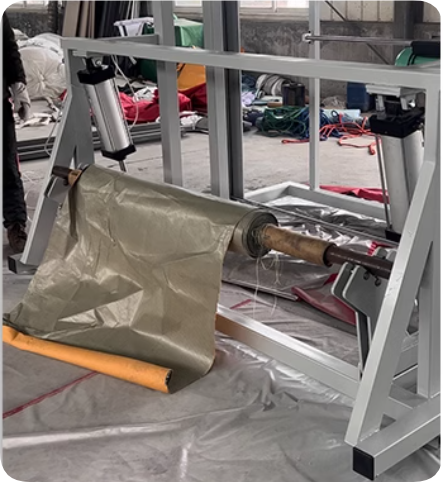

Automatic Lifting System
The auxiliary feeding system can realize automatic feeding for heavy fabrics.

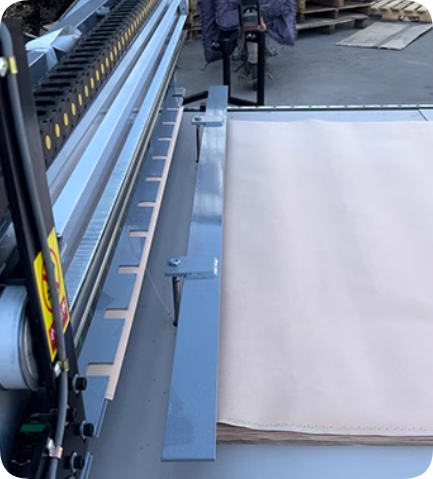

Automatic Pressing
The edge of the fabric can be pressed to prevent the fabric from curling up and ensure the flatness of the feeding.
Your Trusted Partner in Precision Cutting
One Stop Solution for You
All of our products have obtained the EU CE certification, and we can provide customers with authentic and valid customs declaration documents.
Precision Installation
With our seasoned installation engineers at the helm, meticulous adjustments to the X/Y/Z axes’ movement clearances and working platform flatness are executed. This attention to detail ensures the machine operates at peak precision, safeguarding the quality and accuracy of your output
Customer Testimonials
We have more than 1,000 machines running successfully in more than 50 countries and regions around the world. Now, let us help you achieve intelligent production.
Packaging and Shipping
The Sturdiness and Safety Measures in Place for Packaging and Transportation
Our machines are securely encased in robust, industrial-grade packaging, and shipped via trusted carriers to ensure they arrive in pristine condition, ready for immediate deployment. precision, safeguarding the quality and accuracy of your output
Training for Install and Use
- Perfect Teaching Video
- Detailed Text and Picture Tutorials
- 7X24 Hours Online Answer
- Video Connection, Quick Solution
- Global Dispatch, On-Site Training
